Verification Results for Simulated and Observed FC and Salinity Data for Oct 2004 Storm Event Using 91x96 Grid (Port Orchard)

Data Summary of Sampling Results

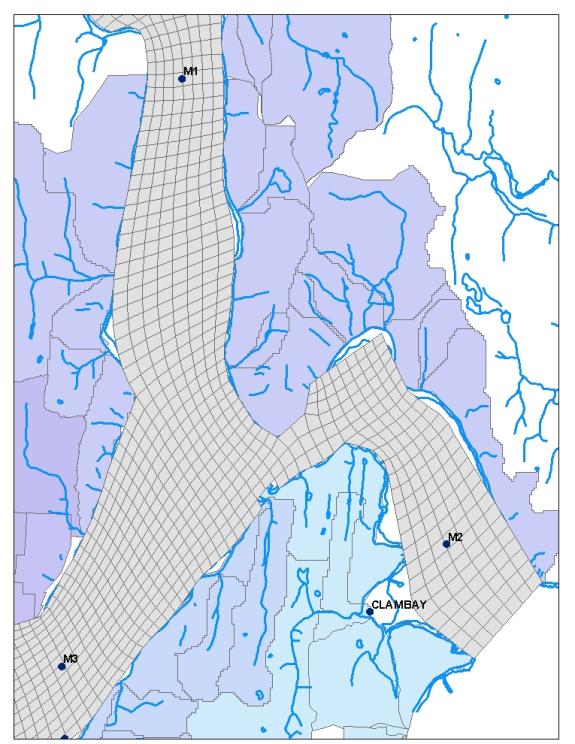

Map of Stations

Results

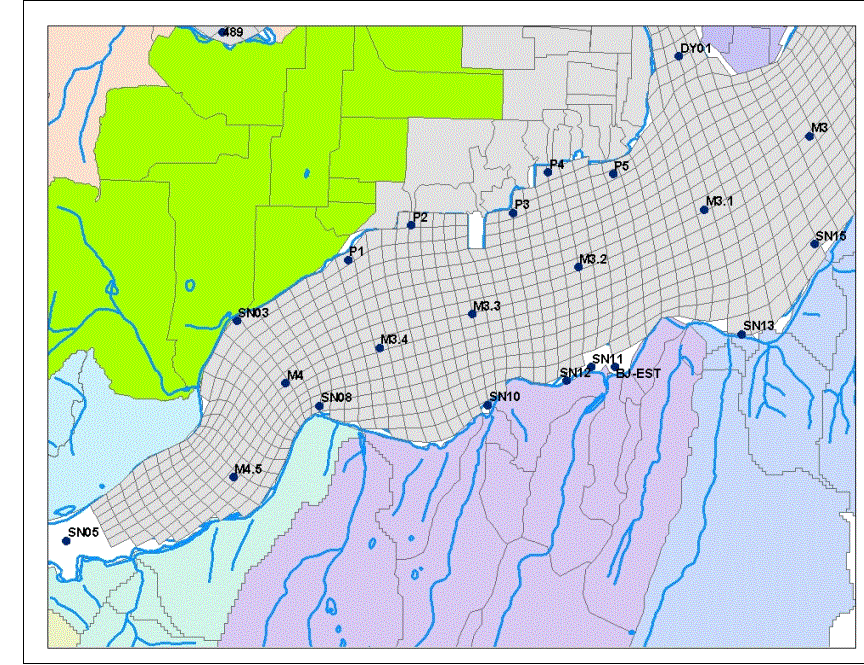

Map of Stations



M1 Port Orchard Passage (btwn E. Bremerton and BI)

DY01 Mouth of Port Washington Narrows

M3 Mouth of Sinclair Inlet

SN15 Sinclair Inlet mouth of Sacco Creek

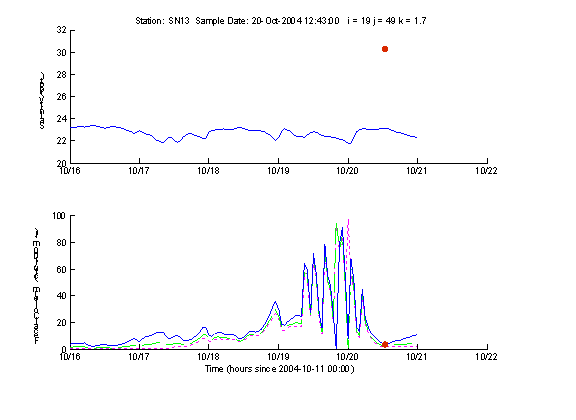

SN13 Sinclair Inlet mouth of Karcher Creek

M3.1 Sinclair Inlet middle of Inlet btwn PSNS and PO

M3.2 Sinclair Inlet middle of Inlet off DD6

P3 Sinclair Inlet PSNS CIA west

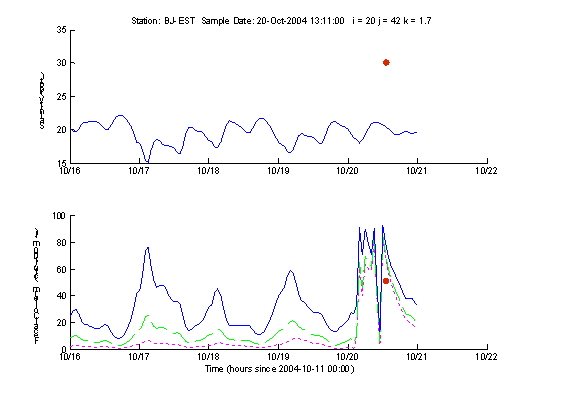

BJ-EST Sinclair Inlet mouth of Blackjack Creek

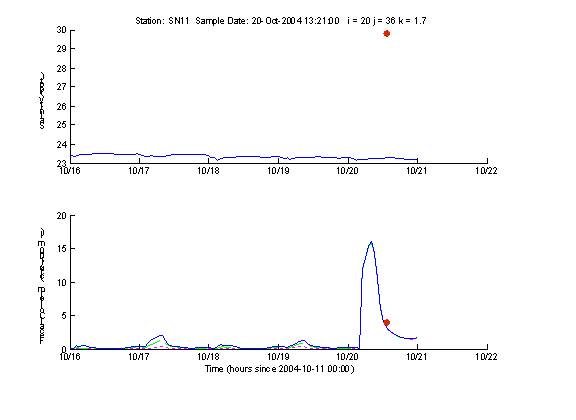

SN11 Sinclair Inlet Port Orchard Marina

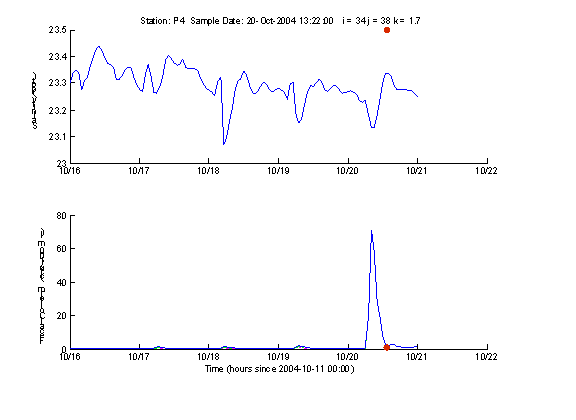

P4 Sinclair Inlet PSNS CIA middle

SN12 Sinclair Inlet Port Orchard Waterfront

M3.3 Sinclair Inlet middle

M3.3Dup Sinclair Inlet middle

P1 Sinclair Inlet PSNS (Callow Ave)

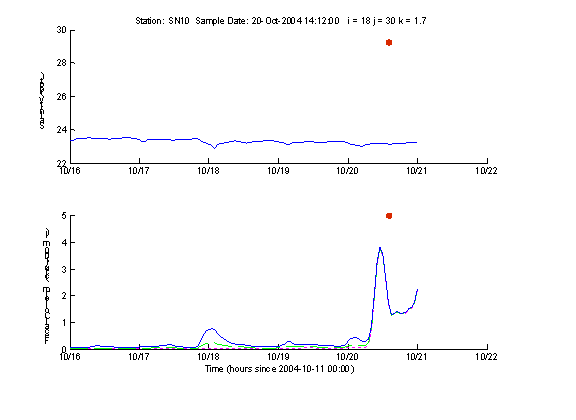

SN10 Sinclair Inlet Port Orchard Wilkins

P2 Sinclair Inlet PSNS Naval Station (PSNS015)

M3.4 Sinclair Inlet middle off shore of reserve basin

SN08 Sinclair Inlet Ross Point nearshore

M4 Sinclair Inlet middle off shore of Ross Point

M4Dup Sinclair Inlet middle off shore of Ross Point

M4.5 west Sinclair Inlet

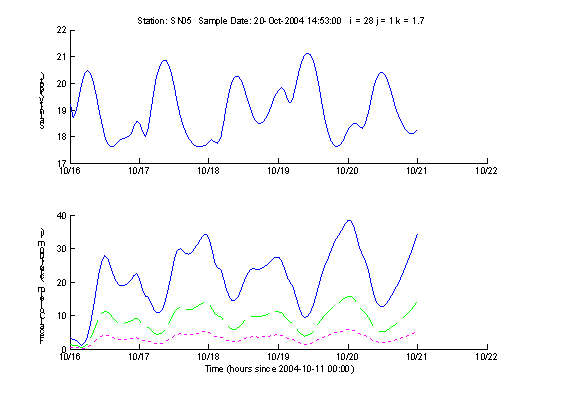

SN05 Sinclair Inlet mouth of Gorts Creek

SN05 dup Mouth of Gorst Creek

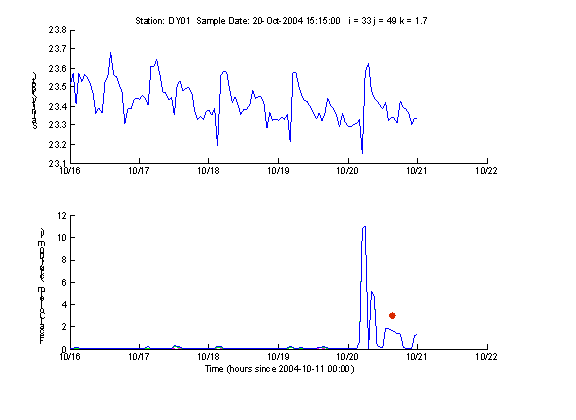

DY01 Mouth of Port Washington Narrows

DY01

M2 Rich Passage

M2dup

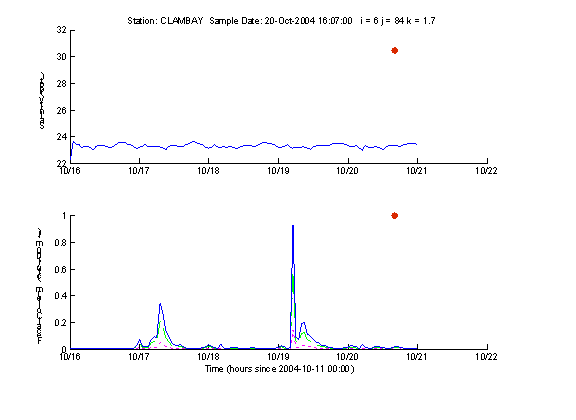

CLAMBAY mouth of Beaver Creek
